- Enclosed cab with A/C + heat
- Load-sensing 9-way valve
- Large LCD display
- Pilot controls

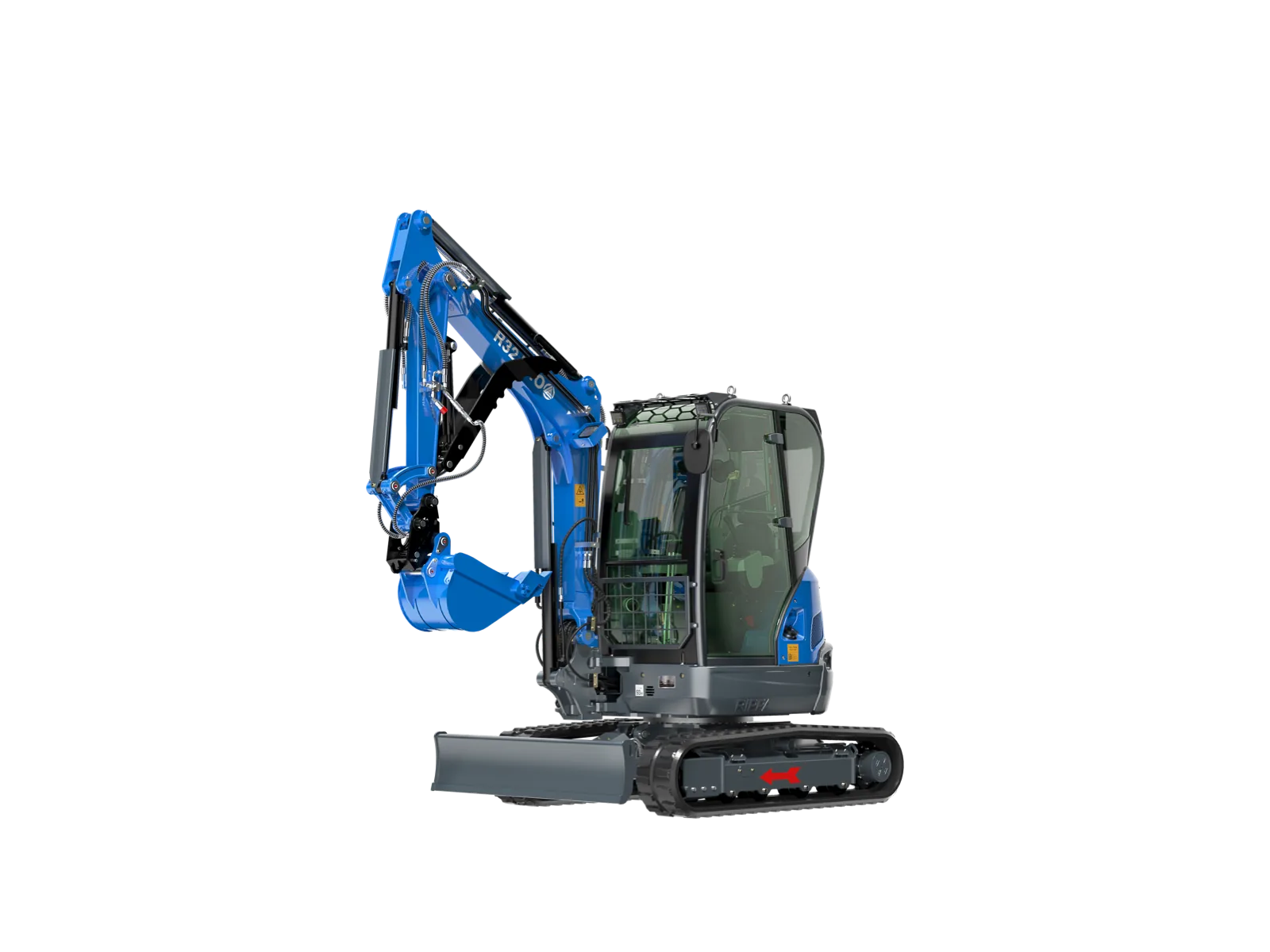

RIPPA R32 PRO mini excavator
Mini excavator (3.2-ton) · A/C cab
1 in Caldwell, ID1 in stock at our store in Caldwell, IDCall
~8,000 lb
Operating weightHeaviest of 6 excavators
~9½ ftMax dig depth
~6,100 lbfBreakout force
~16 ftMax reach
~26 gpmHydraulic flow
61 inWidth
~10½ ftMax dump height
Water-cooled ~25 hp See it in 3D
R32 PRO spec sheet
Lift & force
| Breakout (digging) force | ~6,100 lbf |
|---|---|
| Bucket capacity | ~3 ft³ |
Digging & reach
| Max dig depth | ~9½ ft |
|---|---|
| Max reach | ~16 ft |
| Max dig height | ~15 ft |
| Max dump height | ~10½ ft |
| Boom swing | 110° |
| Boom length | ~87 in |
Size & weight
| Operating weight | ~8,000 lb |
|---|---|
| Machine weight | ~7,700 lb |
| Width | 61 in |
| Length | ~9½ ft |
| Height | ~8 ft |
| Tail swing radius | ~31 in |
| Counterweight clearance | ~21 in |
| Bucket width | ~16 in |
Travel
| Ground pressure | 5.2 psi |
|---|---|
| Travel speed | ~1.1 / 1.7 mph |
| Gradeability | 30% |
Engine

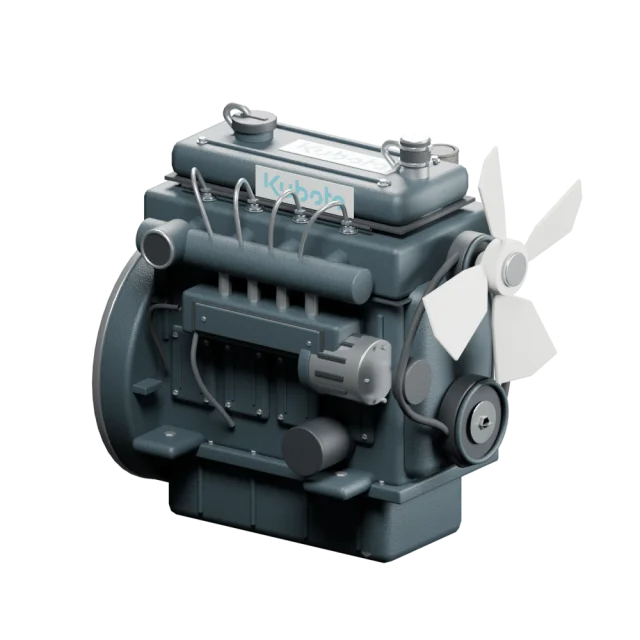

| Engine | Kubota V1505 · 4-cyl water-cooled diesel |
|---|---|
| Power | ~25 hp |
| Fuel burn | ~0.3–0.4 gal/h |
| Fuel tank | ~12 gal |
| Service | Engine oil 5 L · 1.32 gal |
Hydraulics
| Hydraulic flow | ~26 gpm |
|---|---|
| Hydraulic pressure | ~2,900 psi |
| Pumps & valves | Load-sensing variable-displacement piston pump 45 mL/rev (Taifeng) · load-sensing 9-way valve (Taifeng) · LTM03AX two-speed travel motors |
| Hydraulic tank | ~10.5 gal |
