- Pilot hydraulic joysticks
- Retractable tracks + blade
- Hydraulic thumb & quick coupler
- Two-speed travel

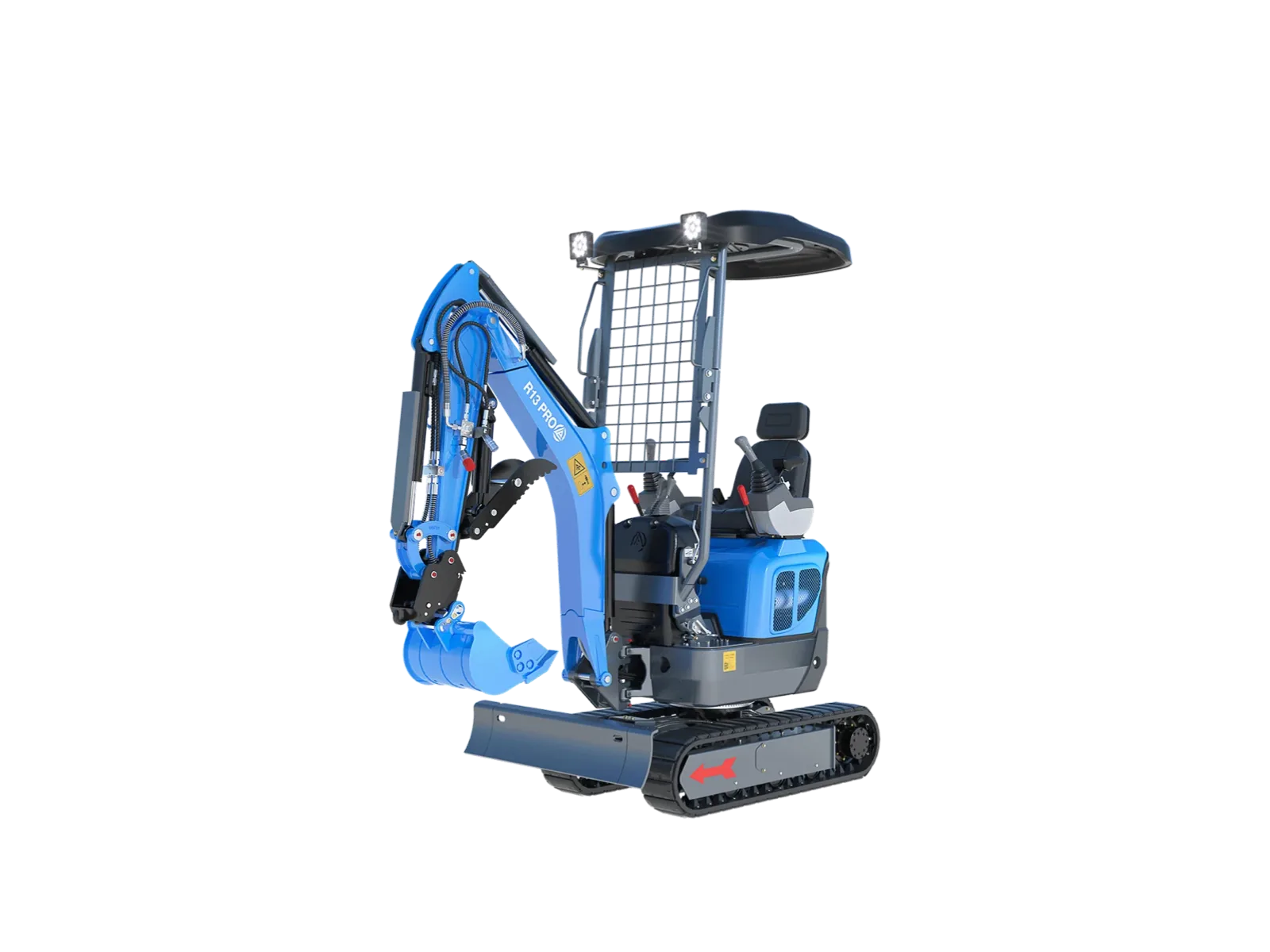

RIPPA R13 PRO mini excavator
Mini excavator (1.3-ton)
2 in Caldwell, ID2 in stock at our store in Caldwell, IDCall
~2,900 lb
Operating weightBelow average for excavators
~6½ ftMax dig depth
~2,200 lbfBreakout force
~11½ ftMax reach
~6.5 gpmHydraulic flow
~33 inWidth
~6½ ftMax dump height
Water-cooled ~14 hp See it in 3D
R13 PRO spec sheet
Lift & force
| Breakout (digging) force | ~2,200 lbf |
|---|---|
| Bucket capacity | ~0.5 ft³ |
Digging & reach
| Max dig depth | ~6½ ft |
|---|---|
| Max reach | ~11½ ft |
| Max dig height | ~9½ ft |
| Max dump height | ~6½ ft |
| Boom swing | 105° |
| Boom length | ~57 in |
Size & weight
| Operating weight | ~2,900 lb |
|---|---|
| Machine weight | ~2,700 lb |
| Track width range | ~30–39 in |
| Width | ~33 in |
| Length | ~7½ ft |
| Height | ~8 ft |
| Counterweight clearance | ~16 in |
| Bucket width | ~16 in |
Travel
| Ground pressure | ~3.9 psi |
|---|---|
| Travel speed | ~1.1 / 1.7 mph |
| Gradeability | 30% |
Engine
| Engine | Kubota D722 · 3-cyl water-cooled diesel |
|---|---|
| Power | ~14 hp |
| Fuel burn | ~0.3–0.4 gal/h |
| Fuel tank | ~2.5 gal |
| Service | Engine oil 2.5 L · 0.66 gal |
Hydraulics
| Hydraulic flow | ~6.5 gpm |
|---|---|
| Hydraulic pressure | ~2,600 psi |
| Pumps & valves | Gear pumps 5 + 5 + 3 mL/rev · THD12 valve (Tengfei) · WDM-390 2-speed travel motors |
| Hydraulic tank | ~3 gal |
