Rhinoceros RH25 mini excavator
Mini excavator (2–4 ton class) · canopy
1 in Federal Way, WA1 in stock at our store in Federal Way, WA
~5,100 lb
Operating weightAbove average for excavators
~8 ftMax dig depth
~14 ftMax reach
~16 gpmHydraulic flow
~3,600 lbfBreakout force
~57 inWidth
~9½ ftMax dump height
Water-cooled 19 hp See it in 3D
RH25 spec sheet
Lift & force
| Breakout (digging) force | ~3,600 lbf |
|---|---|
| Bucket capacity | ~1.4 ft³ |
Digging & reach
| Max dig depth | ~8 ft |
|---|---|
| Max reach | ~14 ft |
| Max dig height | ~13½ ft |
| Max dump height | ~9½ ft |
Size & weight
| Operating weight | ~5,100 lb |
|---|---|
| Width | ~57 in |
| Length | ~12½ ft |
| Height | ~8 ft |
| Track length | ~75 in |
| Tail swing radius | ~35 in |
| Counterweight clearance | ~21 in |
Travel
| Ground pressure | ~5.2 psi |
|---|---|
| Swing speed | 10.5 rpm |
Engine
| Engine | Kubota D1105 diesel · 1.123 L |
|---|---|
| Power | 19 hp |
| Fuel tank | ~5 gal |
Hydraulics
| Hydraulic flow | ~16 gpm |
|---|---|
| Hydraulic pressure | ~3,200 psi |
| Hydraulic tank | ~5.5 gal |
What's included
Every RH25 comes with this 39-piece tool box.
SocketsMetric, 8–30 mmQuantity ×13
Ratchet handleDrives every socketQuantity ×1

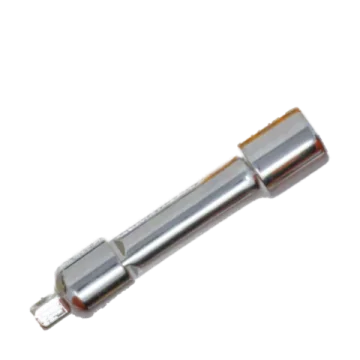

Extensions & adapterLong bar, short bar, drive adapterQuantity ×3

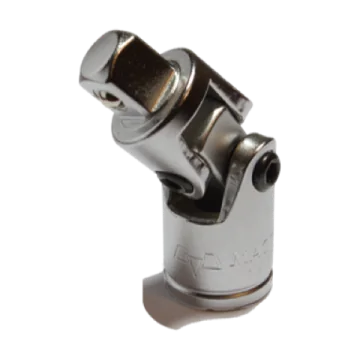

Universal jointReaches bolts at an angleQuantity ×1
L-handle drive barExtra leverage on tight boltsQuantity ×1
Socket wrenchHeavy 12-point socket on a fixed barQuantity ×1

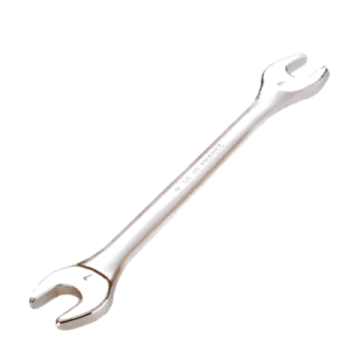

Open-end wrenchesMetric, 8 × 10 to 27 × 30 mmQuantity ×7

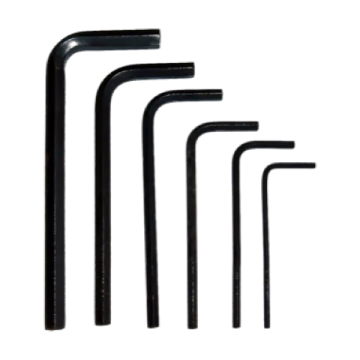

Hex keysBall-end L keysQuantity ×6
Combination pliersGrip, twist and cut wireQuantity ×1
Long-nose pliersTight spots, pins and clipsQuantity ×1
Phillips screwdriverCross-head screwsQuantity ×1
Flat screwdriverSlotted screws, prying clipsQuantity ×1

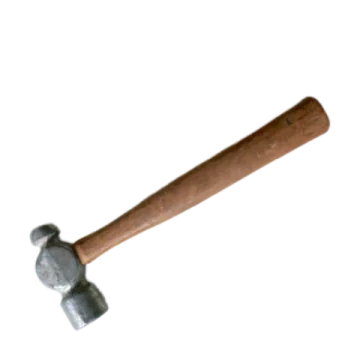

Ball-peen hammerPins and bushingsQuantity ×1

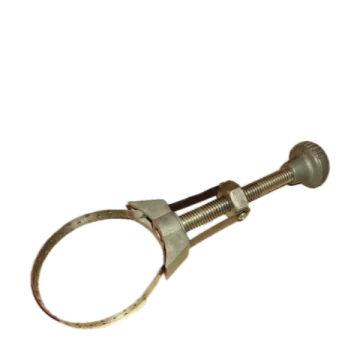

Oil filter wrenchSpins off the engine oil filterQuantity ×1
