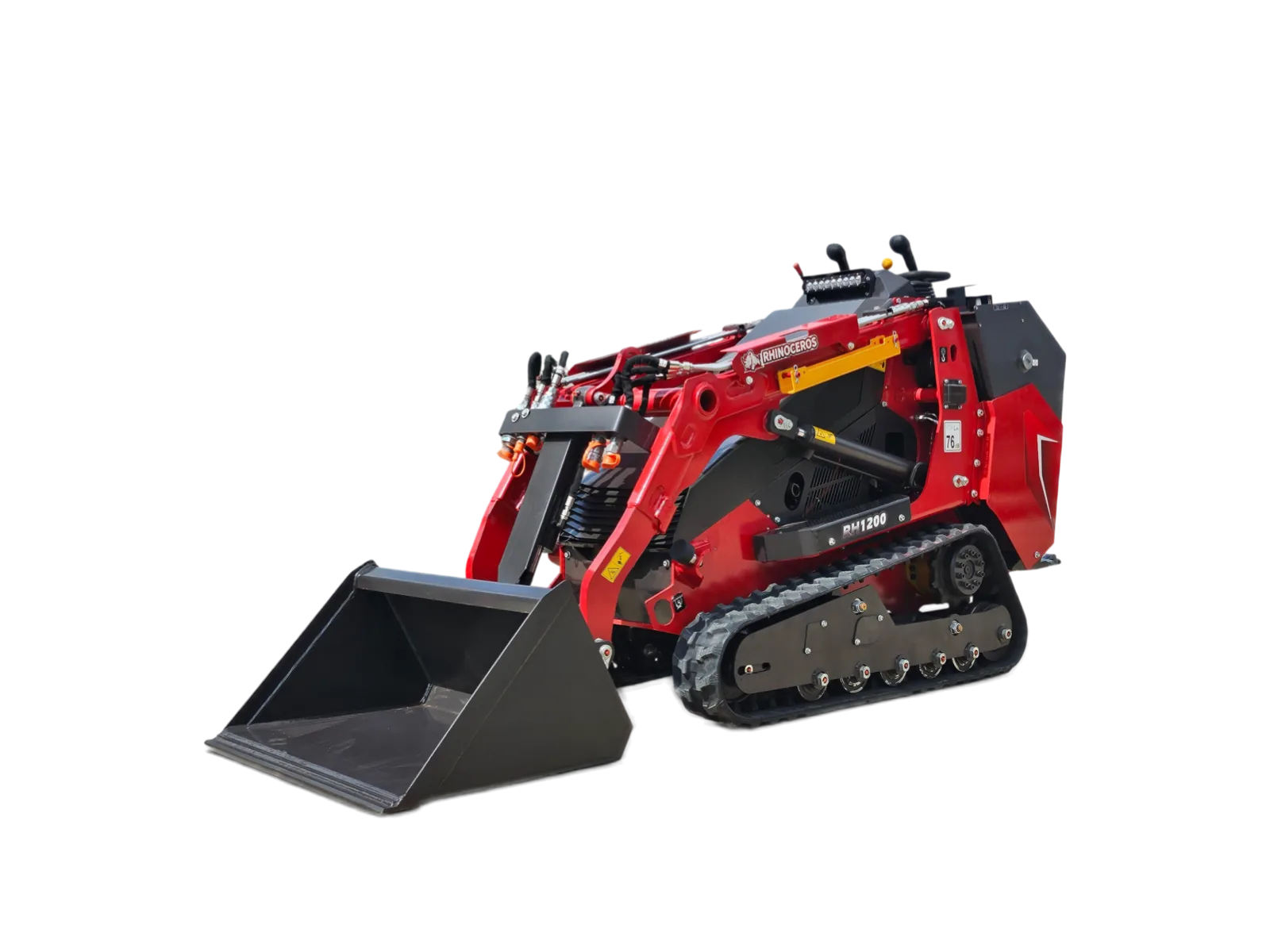

Rhinoceros RH1200 stand-on mini skid steer
Stand-on mini skid steer
1 in Federal Way, WA1 in stock at our store in Federal Way, WA
~1,000 lb
Rated operating capacityTied highest of 3 mini skid steers

~4,100 lbOperating weight
~7½ ftHinge pin height
~24 gpmHydraulic flow
~37 inWidth
~5½ ftMax dump height
~4 mphTravel speed
Water-cooled ~24 hp See it in 3D
RH1200 spec sheet
Lift & force
| Rated operating capacity | ~1,000 lb |
|---|---|
| Tipping load | ~3,000 lb |
Digging & reach
| Max dump height | ~5½ ft |
|---|---|
| Dump reach | ~25 in |
| Hinge pin height | ~7½ ft |
| Operating height (bucket up) | ~10 ft |
Size & weight
| Operating weight | ~4,100 lb |
|---|---|
| Width | ~37 in |
| Length | ~10 ft |
| Height | ~4½ ft |
| Track length | ~47 in |
| Ground clearance | ~6 in |
Travel
| Ground pressure | ~4.8 psi |
|---|---|
| Travel speed | ~4 mph |
| Gradeability | 35% |
Engine
| Engine | Kubota D1703 (D1703BM-DI-EF04) · 3-cyl diesel · EPA Tier 4 |
|---|---|
| Power | ~24 hp |
| Fuel tank | ~10.5 gal |
| Service | Engine oil 1.29 gal · 4.9 L · departure 33° / approach 25° |
Hydraulics
| Hydraulic flow | ~24 gpm |
|---|---|
| Hydraulic pressure | ~3,200 psi |
| Pumps & valves | Bondioli main pump · Taifeng valve · Hengli travel motors |
| Hydraulic tank | ~9.5 gal |
What's included
Every RH1200 comes with this 39-piece tool box.
SocketsMetric, 8–30 mmQuantity ×13
Ratchet handleDrives every socketQuantity ×1
Extensions & adapterLong bar, short bar, drive adapterQuantity ×3
Universal jointReaches bolts at an angleQuantity ×1
L-handle drive barExtra leverage on tight boltsQuantity ×1
Socket wrenchHeavy 12-point socket on a fixed barQuantity ×1
Open-end wrenchesMetric, 8 × 10 to 27 × 30 mmQuantity ×7
Hex keysBall-end L keysQuantity ×6
Combination pliersGrip, twist and cut wireQuantity ×1
Long-nose pliersTight spots, pins and clipsQuantity ×1
Phillips screwdriverCross-head screwsQuantity ×1
Flat screwdriverSlotted screws, prying clipsQuantity ×1
Ball-peen hammerPins and bushingsQuantity ×1
Oil filter wrenchSpins off the engine oil filterQuantity ×1
