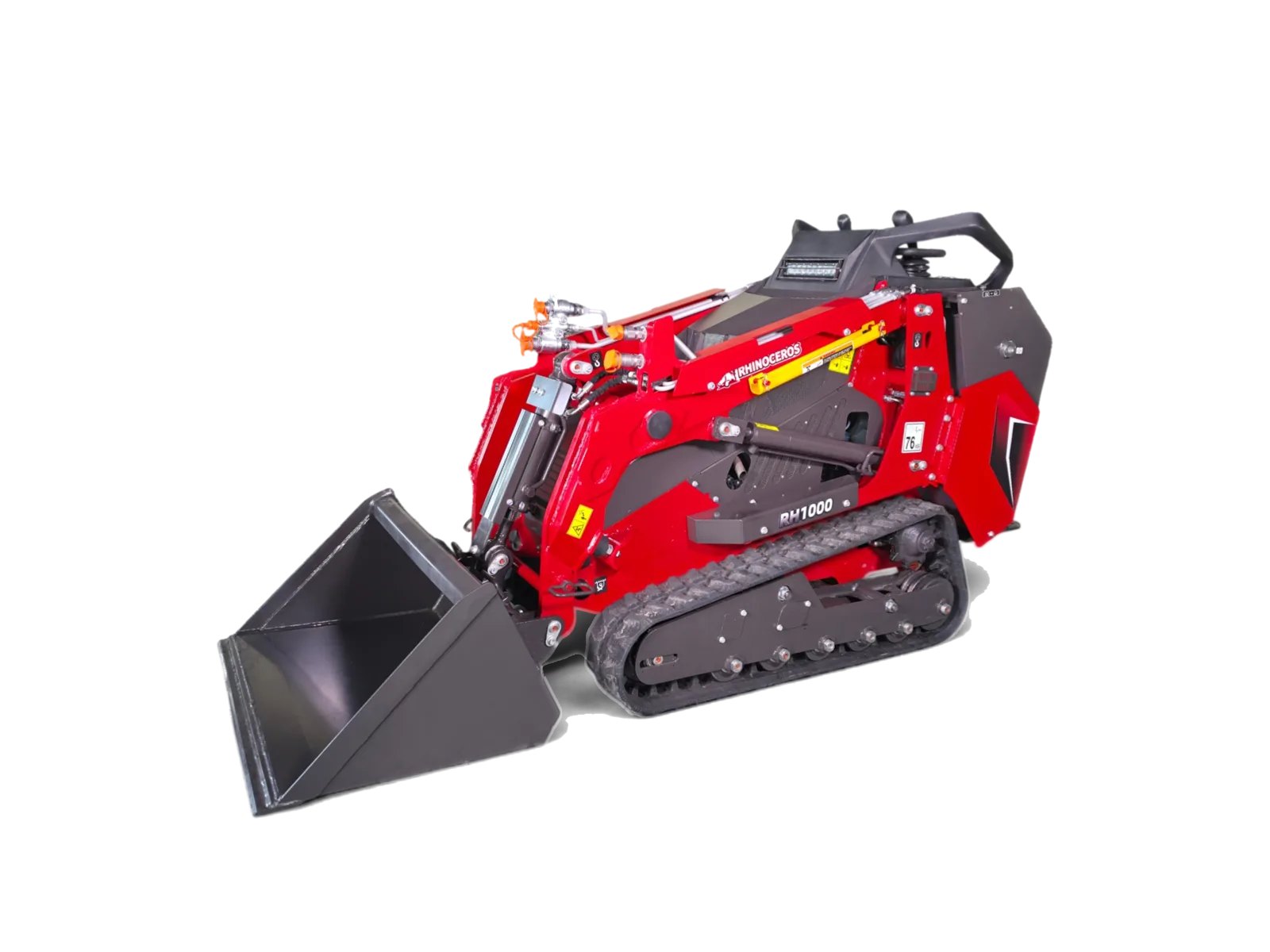

Rhinoceros RH1000 stand-on mini skid steer
Stand-on mini skid steer
1 in Caldwell, ID1 in stock at our store in Caldwell, IDCall
~1,000 lb
Rated operating capacityTied highest of 3 mini skid steers

~3,400 lbOperating weight
~7 ftHinge pin height
17 gpmAux hydraulic flow
~37 inWidth
~5½ ftMax dump height
~4 mphTravel speed
Water-cooled ~19 hp See it in 3D
RH1000 spec sheet
Lift & force
| Rated operating capacity | ~1,000 lb |
|---|---|
| Tipping load | ~2,900 lb |
Digging & reach
| Max dump height | ~5½ ft |
|---|---|
| Hinge pin height | ~7 ft |
| Operating height (bucket up) | ~9½ ft |
Size & weight
| Operating weight | ~3,400 lb |
|---|---|
| Width | ~37 in |
| Length | ~9½ ft |
| Height | ~4½ ft |
| Track length | 46 in |
| Ground clearance | ~5 in |
Travel
| Ground pressure | 4.5 psi |
|---|---|
| Travel speed | ~4 mph |
Engine
| Engine | Kubota D1105 diesel · 1.1 L |
|---|---|
| Power | ~19 hp |
Hydraulics
| Aux hydraulic flow | 17 gpm |
|---|---|
| Hydraulic pressure | ~3,200 psi |
| Pumps & valves | Dual hydrostatic drive pumps 22.1 gpm (83.6 L/min) · aux gear pump |
| Hydraulic tank | ~9.5 gal |
What's included
Every RH1000 comes with this 39-piece tool box.
SocketsMetric, 8–30 mmQuantity ×13
Ratchet handleDrives every socketQuantity ×1
Extensions & adapterLong bar, short bar, drive adapterQuantity ×3
Universal jointReaches bolts at an angleQuantity ×1
L-handle drive barExtra leverage on tight boltsQuantity ×1
Socket wrenchHeavy 12-point socket on a fixed barQuantity ×1
Open-end wrenchesMetric, 8 × 10 to 27 × 30 mmQuantity ×7
Hex keysBall-end L keysQuantity ×6
Combination pliersGrip, twist and cut wireQuantity ×1
Long-nose pliersTight spots, pins and clipsQuantity ×1
Phillips screwdriverCross-head screwsQuantity ×1
Flat screwdriverSlotted screws, prying clipsQuantity ×1
Ball-peen hammerPins and bushingsQuantity ×1
Oil filter wrenchSpins off the engine oil filterQuantity ×1
